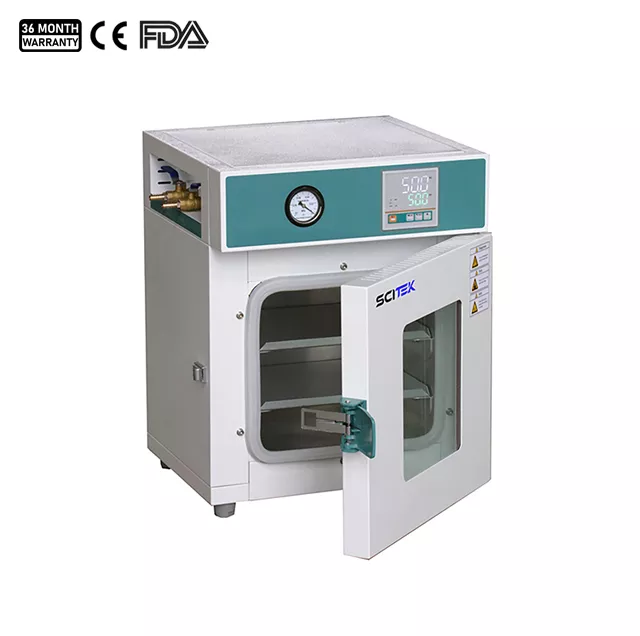

Vertical Vacuum Oven Feature:

PID control with PT100 sensor, LCD controller, displays 3 data groups on one screen.
Double glass window: explosion-proof glass inside, resin plate outside for enhanced safety.
Inflatable port with durable silicone sealant for excellent airtightness.
LCD vacuum gauge with five pressure unit options: Mpa, Kpa, bar, Psi, KGF/cm².

Vertical Vacuum Oven Specifications:

Model		VO-25D	VO-55D	VO-90D
Capacity (L)		24	52	91
Heating Mode		Four sides heating
Size(WxDxH)	Internal (mm)	300x300x270	415x370x340	450x450x450
Size(WxDxH)	External (mm)	480x480x606	560x540x680	640x590x780
Temperature	Range (℃)	RT+10~250
	Fluctuation (℃)	±1
	Resolution (℃)	0.1
	Sensor	PT100
Controller		PID
Vacuum Degree Range		<133Pa
Vacuum Nozzle Diameter(mm)		Φ10
Display		High efinition LCD
Timer		0~9999min (With timing wait function)
Material	Internal	High-quality hairline stainless steel
Material	External	Cold rolled steel electrostatic spraying exterior
Shelves(Standard)		2
Safety Device		Over temperaure visible & audible alarm
Electricity	Voltage/Frequency	AC 220/110V, 50/60Hz
Electricity	Consumption (W)	800	1400	2000
N.W./G.W. (kg)		42/52	67/92	82/105
Shipping Size (WxDxH)(mm)		590x550x750	704x620x814	739x700x889
Optional		Vacuum pump filter, silica gel connecting pipe, vacuum pump
