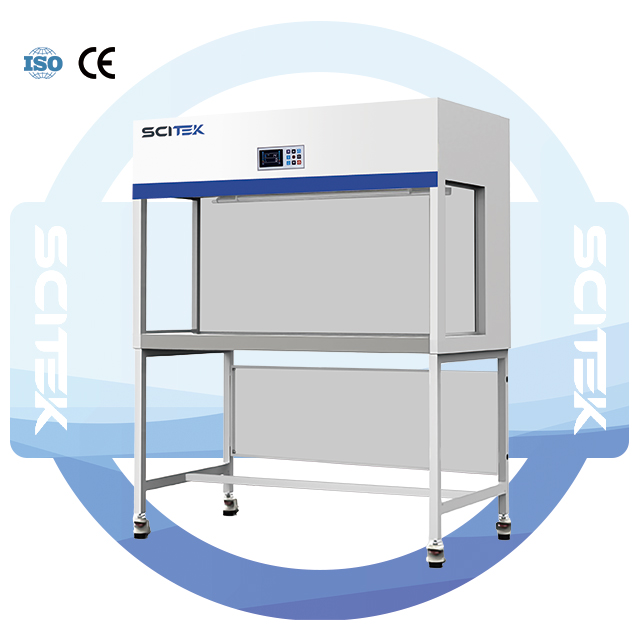

Horizontal Laminar Flow Cabinet Feature:

UV sterilization with UV lamp timer function.
Installed with two side glass windows for easy experimental observation.
Equipped with temperature sensor to display the real temperature during operation.
LCD display shows the running status of each function in real time.

Horizontal Laminar Flow Cabinet Specification:

Model		LCB-H1100E	LCB-H1300E	LCB-H1500E	LCB-H1800E
External Size (W×D×H)(mm)		1100×750×1750	1300×750×1750	1500×750×1750	1800×750×1750
Internal Size (W×D×H)(mm)		1020×510×620	1220×510×620	1420×510×620	1720×510×620
Work Surface Height		750mm
Control System		Microprocessor controller with LCD display, display the operating status of each function
Airflow System	Airflow Velocity	0.2~0.5m/s, speed adjustable
Air filtration System	Pre-Filter	1pcs, Polyester fiber,washable
	HEPA Filter	1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
	Cleanliness Grade	ISO Class 5 (formerly Class 100)
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial powder coating
	Work Surface	304 Stainless steel
	Side Window	5 mm UV resistant tempered glass
Electrical System	UV Lamp	20W×1	30W×1	30W×1	18W×2
	UV Lamp	With timing function, Interlock with LED lamp, blower, Socket. Emission of 253.7 nanometers for best sterilization effect.
	LED Lamp	6.5W×1	9.6W×1	9.6W×1	6.5W×2
	Consumption	160W	170W	300W	310W
	Consumption	Not include socket loading power consumption
	Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination		≥900Lux
Sound Emission		≤65dB(A)
Standard Accessory		1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2; 5. Footmaster Caster
Optional Accessory		1. Air Velocity Sensor; 2. IV Bar with Hooks
Net Weight (kg)		150	170	200	225
Gross Weight (kg)		210	230	260	290
Shipping Size (W×D×H)(mm)		1240×930×1255	1440×930×1255	1640×930×1255	1940×930×1255
Shipping Volume (m³)		1.45	1.7	1.9	2.3
