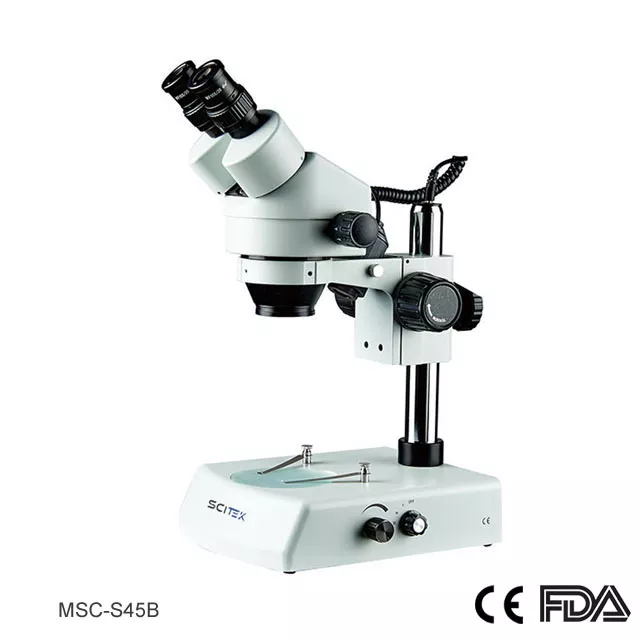

Stereoscopic Microscope MSC-45 Series

Model : MSC-S45B, MSC-S45T
Viewing Head : Sliding Binocular Head at 45°, 360° Rotatable / Sliding Trinocular Head at 45°, 360°Rotatable
Eyepiece : WF10x/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses / xOptional
Eyepiece 15x/15mm, 20x/10mm, 25x/9mm, 30x/8mm
Objectives : 0.7x-4.5x stereo zoom, Zoom Ratio 6.4:1 / *Aux Lens 0.5x, 2x

Stereoscopic Microscope Specification:

Model	MSC-S45B	MSC-S45T
Magnification	Zoom objective 7X-45X
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Eyepiece	Optional eyepiece 15X/15mm, 20X/10mm, 25X/9mm, 30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired.	Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired.
	Interpupillary distance adjustment: 54-76mm;	Interpupillary distance adjustment: 54-76mm;
	Diopter adjustment: ±5 diopters	Diopter adjustment: ±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio: 6.4:1
Objective	Aux Lens: 0.5X, 2X
Focusing Mount	Focusing mount with vertical working distance 50mm
Stand	Vertical Post: 240mm;
	Diameter: φ32mm;
	With φ95mm B/W Plastic & Perspex Plate and Paired Clips;
	Base Size: 200x255x60mm
Illumination	Transmitted and reflected 12v/15w halogen; xLED illumination	Transmitted and reflected 12v/15w halogen; xLED illumination
C-Mount	SZM 1X C-Mount;
	SZM 0.5X C-Mount;
	SZM 0.3X C-Mount;
Information: 3.5X-270X with optional eyepieces and objectives
Package	Carton
Shipping Size (W×D×H)(mm)	510x210x380	510x280x380
G.W. (kg)	7	7
